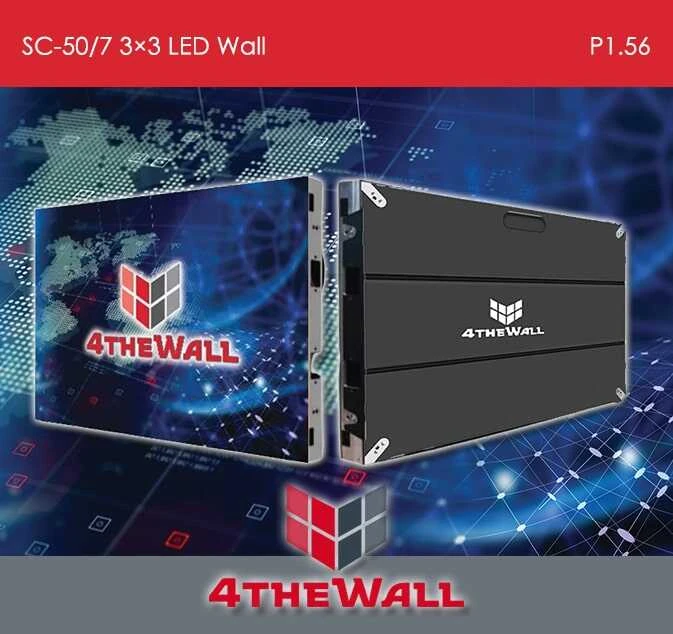

SC-50/7- Video Wall 3X3 P1.56

Ürün Kodu : 10347
1.700.000 TL
Havale Fiyatı :
1.666.000 TL
(0) Yorum Yap
Daha Fazla 4THEWALL Ürünü
ÜCRETSİZ TESLİMAT
2 YIL GARANTİ
KOLAY İADE

Technical Specification



Pixel Pitch (mm)

1.5625 (COB Option)

Module Size (mm)

150 x 168.75 (Indoor)

Module Resolution (px)

96 x 108

Scanning Mode

1/48

LED Configuration

1R1G1B

LED Type

SMD1212

Service Method

Front Service

Installation

Front or back installation

Cabinet Size (mm)

600 x 337.5 x 50 WxHxD

Cabinet Resolution (px)

384 x 216

Physical Density (dot/m2)

409600

Cabinet Material

Die-Casting Aluminum

Cabinet Flatness

≤0.10

Grey Scale (Bit)

16 Bit (14 Bit + Control Software 2 Bit)

Protection Level

Front: IP65, Back: IP45

Horizontal View Angle (deg)

≥140

Vertical View Angle (deg)

≥120

Best Viewing Distance (meter)

1.6 meter

Life Span (hours)

≥100000

MTBF (Hours)

≥10000

Optical Specification



Brightness (cd/m2)

500-900 cd/m2

Color Temperature

3200-9300K Adjustable

Brightness Uniformity

≥98%

Color Uniformity

Within 0.003 Cx, Cy

Horizontal / Vertical View Angle

≥ 140°/≥ 120 °

Contrast Ratio

10000:1

Color Calibration of Single Dot

Yes

Brightness Calibration of Single

Yes

Operational Specification



Drive Mode

Constant Current Drive

Module Onput Voltage

4.2V DC

Module Max Current

4.5V DC

Refresh Frame Frequency

50/60Hz

Max Refresh Rate

≥3840Hz

Input Voltage

110-220V AC

Cabinet Max Power Consumption

≤650W/m2

Cabinet Aver. Power

≤220W/m2

Cabinet Weight

7.5 kg

Working Temperature

-20°C – +80°C

Working Humidity

10%-95% RH

Certification

CE DoC
