Technical Specification |
|
Pixel Pitch (mm) |
2.5 |
Module Size (mm) |
150 x 337.5 (Indoor) |
Module Resolution (px) |
60 x 135 |
Scanning Mode |
1/30 |
LED Configuration |
1R1G1B |
LED Type |
P2.5 mm SMD lamp |
Service Method |
Front Service |
Installation |
Front or back installation |

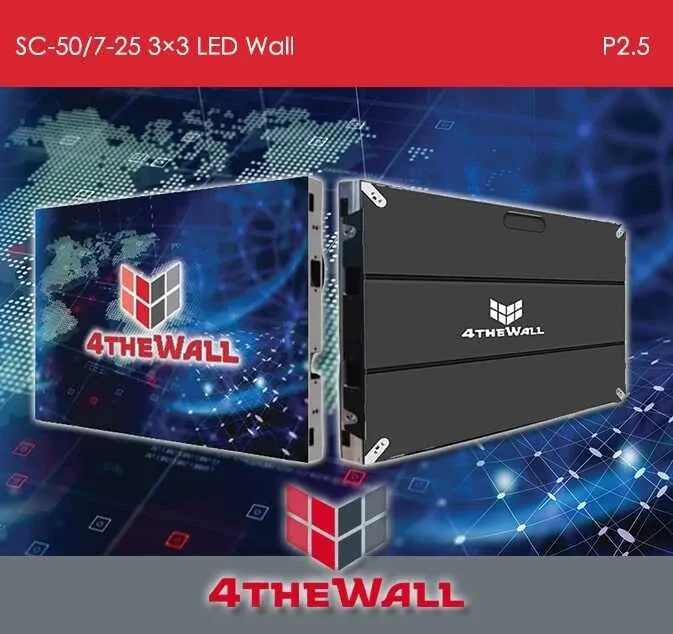

Cabinet Size (mm) |
600 x 337.5 x 50 WxHxD |
Cabinet Resolution (px) |
240 x 135 |
Physical Density (dot/m2) |
160000 |
Cabinet Material |
Die-Casting Aluminum |
Cabinet Flatness |
≤0.10 |
Grey Scale (Bit) |
16 Bit (14 Bit + Control Software 2 Bit) |
Protection Level |
Front: IP65, Back: IP45 |
Horizontal View Angle (deg) |
≥160 |
Vertical View Angle (deg) |
≥140 |
Best Viewing Distance (meter) |
2.5 meter |
Life Span (hours) |
≥100000 |
MTBF (Hours) |
≥10000 |
Optical Specification |
|
Brightness (cd/m2) |
800-1000 cd/m2 |
Color Temperature |
3200-9300K Adjustable |
Brightness Uniformity |
≥98% |
Color Uniformity |
Within 0.003 Cx, Cy |
Horizontal / Vertical View Angle |
≥ 160°/≥ 140 ° |
Contrast Ratio |
8000:1 |
Color Calibration of Single Dot |
Yes – Optional |
Brightness Calibration of Single |
Yes – Optional |
Operational Specification |
|
Drive Mode |
Constant Current Drive |
Module Onput Voltage |
4.2V DC |
Module Max Current |
4.5A DC |
Refresh Frame Frequency |
50/60Hz |
Max Refresh Rate |
≥3840Hz |
Input Voltage |
110-220V AC |
Cabinet Max Power Consumption |
≤650W/m2 |
Cabinet Aver. Power |
≤220W/m2 |
Cabinet Weight |
4.8 kg |
Working Temperature |
-20°C – +50°C |
Working Humidity |
10%-90% RH |
Certification |
CE DoC |
